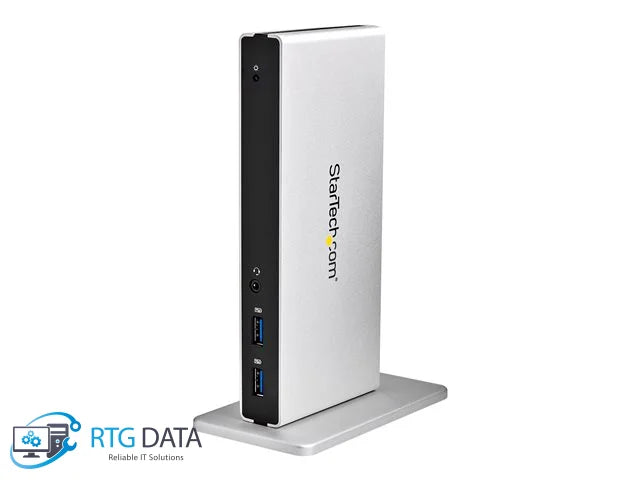

StarTech Single Monitor USB 3.0 Dock Win/Mac (Refurbished)

StarTech Single Monitor USB 3.0 Dock Win/Mac (Refurbished)

Normalpris 599,00 kr
Normalpris Udsalgspris 599,00 kr
Udsolgt
Inklusive skat.
Universal USB 3.0 Laptop Docking Station - DVI Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port...
18 folk ser dette lige nu

TilgængelighedLav lagerbeholdning: 2 tilbage

SKU: USB3SDOCKD
Sælger: StarTech
Type: Dock
Tags: dock
Se komplette oplysninger

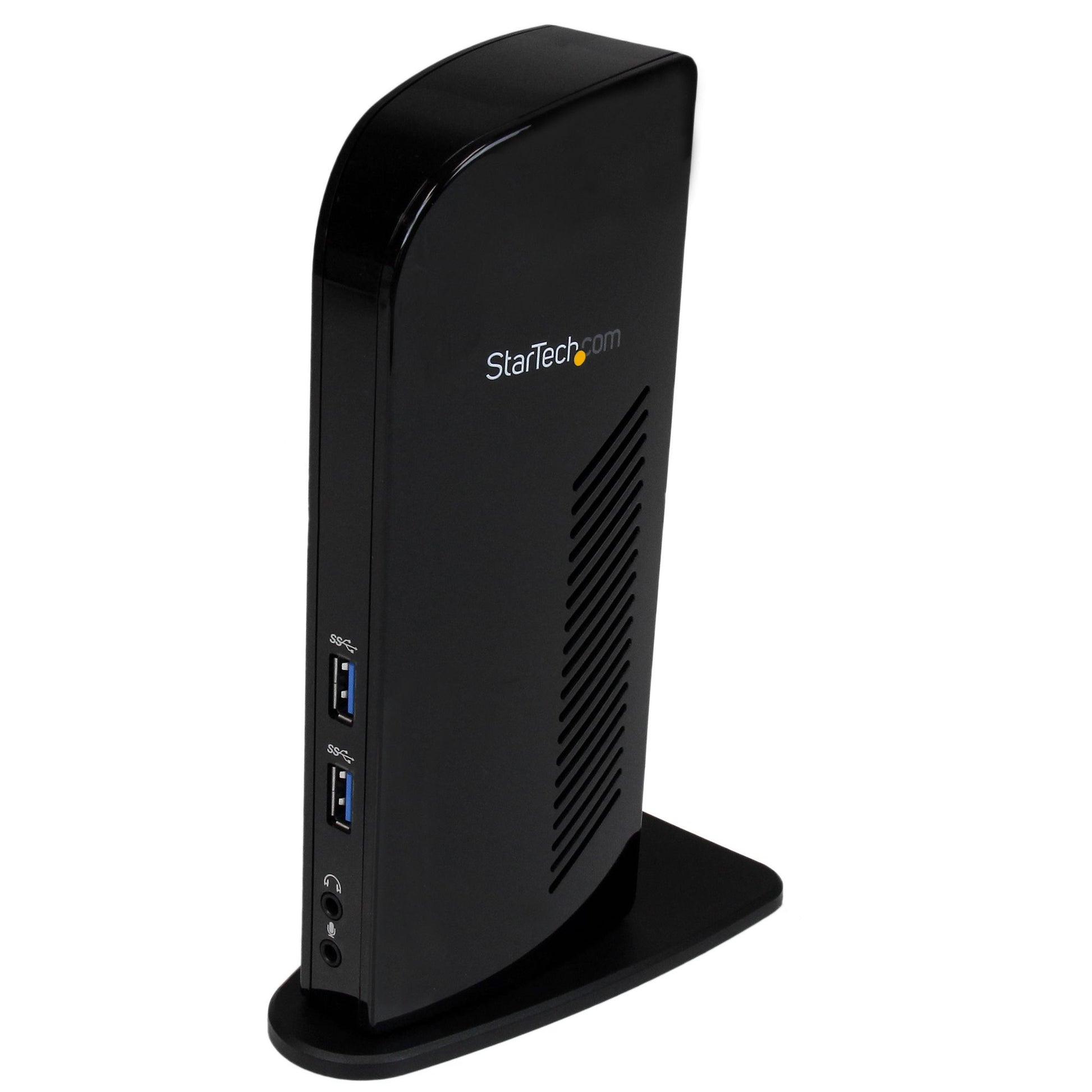

Universal USB 3.0 Laptop Docking Station - DVI

Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port

Product ID: USB3SDOCKD
  • DVI video output with DVI to VGA adapter (not included), offering mirror or extended desktop capabilities
  • 10/ 100/ 1000 Mbps compatible RJ45 Ethernet port
  • Speaker and Microphone support via 3.5mm stereo mini-jacks
  • Supports resolutions up to 1920 x 1200
  • 2 front panel USB 3.0 ports and 4 rear panel USB 2.0 ports
  • Fully compliant with USB 3.0 specification with support for transfer rates up to 5 Gbps
  • Supports the Windows® Aero® interface
  • Vertical, upright positioning



Specifications




Connector Type(s)
2 - 3.5 mm Mini-Jack (3 Position)

1 - DVI-I (29 pin)

1 - RJ-45

2 - USB Type-A (9 pin, 5 Gbps)

4 - USB 2.0 Type-A (4 pin, 480Mbps)

1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
Environmental

Operating Temperature
10°C to 40°C (50°F to 104°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
Hardware

4K Support
No
Fast-Charge Port(s)
No
Displays Supported
1
Bus Type
USB 3.2 Gen 1 (5Gbps)
Industry Standards
IEEE 802.3, 802.3u, and 802.3ab
Chipset ID
DisplayLink - DL-3700
VIA/VLI - VL810
Terminus - FE1.1
Realtek - RTL8211E
Indicators

LED Indicators
1 - Power (Blue)

1 - USB Hub Link (Blue)
Packaging Information

Package Quantity
1
Package Length
10.8 in [27.5 cm]
Package Width
7.5 in [19.0 cm]
Package Height
4.3 in [11.0 cm]
Shipping (Package) Weight
2.0 lb [0.9 kg]
Performance

Maximum Digital Resolutions
1920 x 1200
Type and Rate
USB 2.0 - 480 Mbit/s

USB 3.0 - 4.8 Gbit/s
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Physical Characteristics

Color
Black
Material
Plastic
Product Length
7.7 in [19.6 cm]
Product Width
3.0 in [7.7 cm]
Product Height
5.0 in [12.6 cm]
Weight of Product
12.8 oz [364.0 g]
Power

Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Output Current
4A
Plug Type
C
Power Consumption (In Watts)
20
Software

OS Compatibility
Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10, 11
macOS 10.6 to 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
Special Notes / Requirements

System and Cable Requirements
CPU: i3 Dual core 2.8GHz or better
RAM: 2GB or higher
Available USB 3.0 port

Note
Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
